052018 | PEPPERL+FUCHS

Proximity switch, built-in mounting M8, 1 Form A (N/O), 15 mA, Detection range 2 mm, 052018

Order No.: 28G1001
EAN: 4099889447002
MPN:
052018
NBB2-8GM30-E2
Series: NBB
PEPPERL+FUCHS
default L
front L
Image may differ
Unit Price (€ / pc.)
141.6219 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
141.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
141.6219 €

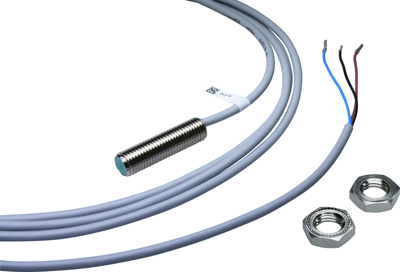

Inductive sensors, type Pepperl+Fuchs NBB2.

Sensing range: 2.0 mm. Output function: NO. Mounting mode: flush. Switching output: PNP. Rated voltage: 10 to 30 VDC. Connection: 2.0 m PVC cable. Voltage drop: max. 3.0 VDC. Open circuit current: max. 15 mA. Switching frequency: max. 3000 Hz. Housing: nickel-plated brass. Degree of protection: IP 67. Ambient temperatures: –25 to 70 °C. Certifications: UL, CSA.

Type: 052018, inductive sensor

Technical specifications
Connection stranded wires
Version Inductive sensor
Detection range 2 mm

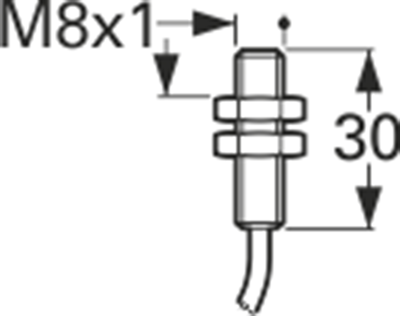

Length 30 mm
Assembly built-in mounting M8
Latching switching function 1 Form A (N/O)
switching current 15 mA
Degree of protection (IP) IP67
Logistics
Country of origin VN
Customs tariff number 85365019
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description lead, 4,4'-isopropylidenediphenol
