2006-8033 | WAGO
Verteilerklemme, Federklemmanschluss, 0,5-10 mm², 1-polig, 41 A, 8 kV, rot, 2006-8033
Einzelpreis (€ / Stk.)
7,0567 € *
Standardlieferzeit ab Hersteller beträgt: 3 Wochen

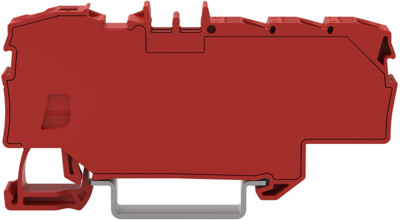

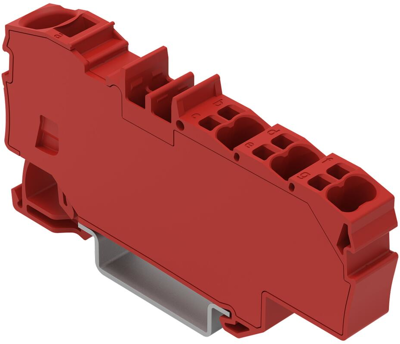

Reihenklemme, 2006-8033, WAGO
Distribution terminal block, with operating slots, 1 x 6 mm² / 6 x 1.5 mm², with integrated end plate, seitliche und mittige Beschriftung, für Tragschiene 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 6,00 mm², rot.
Technische Daten
| Filter | Merkmal | Wert |
|---|---|---|
| Bemessungsstoßspannung | 8 kV | |
| Verschmutzungsgrad | 3 | |
| Farbe | rot | |

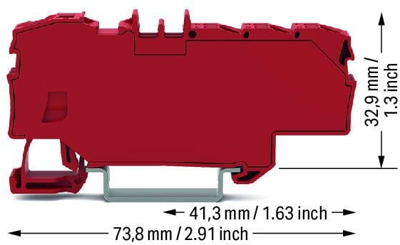

| Höhe | 73.8 mm | |
| Ausführung | Verteilerklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 8 | |
| Leiterquerschnitt | 0,5-10 mm² | |
| Polzahl | 1-polig | |
| Anzahl der Klemmstellen | 7 | |
| Bemessungsspannung | 800 V | |
| Breite | 9 mm | |
| Anschluss | Federklemmanschluss | |
| Nennstrom | 41 A |
Download
Logistik
| Merkmal | Wert |
|---|---|
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| Merkmal | Wert |
|---|---|
| SVHC frei | Nein |
| RoHS konform | Ja |
| Stand der RoHS-Richtlinie | 31.03.15 |
