1-1969598-2 | TE Connectivity

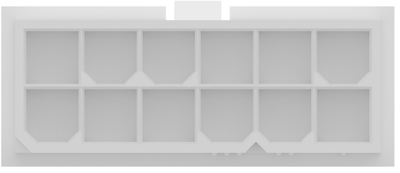

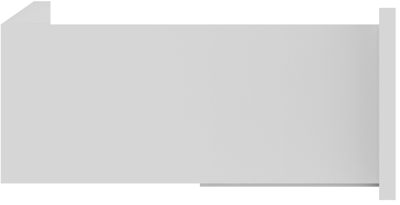

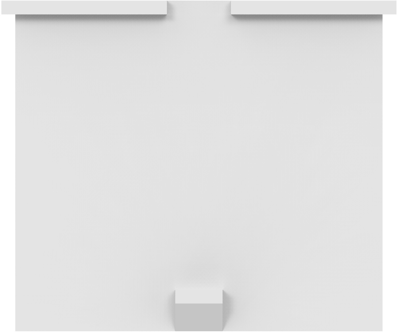

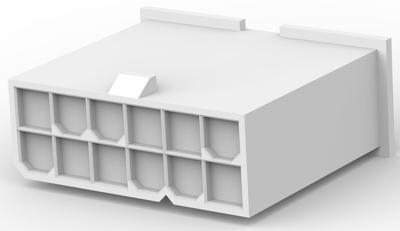

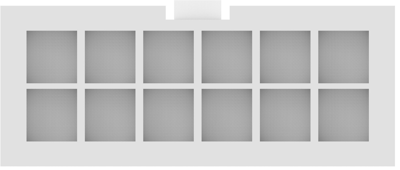

Steckergehäuse, 12-polig, RM 4.2 mm, gerade, natur, 1-1969598-2
Bestellnr.: 71P1023
EAN: 4099891717865
HTN:
1-1969598-2
Als Privatkunde können Sie diesen Artikel kaufen, sobald wir ihn wieder vorrätig haben.
Rechteckiger Steckverbinder, 1-1969598-2, TE Connectivity
Die 1-1969598-2 has been expanded with new models accommodating Terminal Position Assurance (TPA) device to help prevent contact back-out. Snapping the TPA device into place helps to assure that contacts are fully seated in the housing and provides secondary protection against a contact backing out of it's cavity when subjected to vibration, shock or pulling force.
Anwendungen
- Haushaltsgeräte
- Tischcomputer
- Innen-/Außenbeleuchtung
- Sicherheitssysteme
- HVAC-Kontrollsysteme
- Speicher- und Netzwerksysteme
Technische Daten
| Filter | Merkmal | Wert |
|---|---|---|
| Anschluss | Crimpanschluss | |
| Orientierung | gerade | |
| Anzahl der Reihen | 2 | |
| Polzahl | 12-polig | |
| Rastermaß | 4.2 mm | |
| Nennspannung | 600 V | |
| Nennstrom | 9 A | |
| Kontaktart | Stift | |
| Farbe | natur | |
| Ausführung | Steckergehäuse | |
| Verriegelung | Ja |
Download
Logistik
| Merkmal | Wert |
|---|---|
| Ursprungsland | TW |
| Zolltarifnummer | 85366990 |
Compliance
| Merkmal | Wert |
|---|---|
| RoHS konform | Ja |
| Stand der RoHS-Richtlinie | 31.03.15 |
| SVHC frei | Ja |
