NSYSFND146T | Schneider Electric

Tür, verglast, (H x B) 1400 x 600 mm, NSYSFND146T

Bestellnr.: 06P8240
EAN: 3606486378267
HTN:
NSYSFND146T
Herstellerserien: PanelSet SFN
NSYSFND146T Schneider Electric Modulare Gehäuse
Abbildung kann abweichen

Als Privatkunde können Sie diesen Artikel kaufen, sobald wir ihn wieder vorrätig haben.

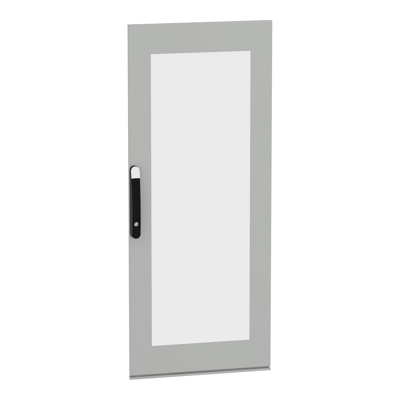

Verglaste Tür, NSYSFND146T, Schneider Electric

This glazed door is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It has a nominal height and width of 1400 mm and 600 mm, respectively. It has a nominal height and width of 1800 mm and 1000 mm, respectively. The door is made of steel sheet and Securit glass, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color with a black (RAL 9005) handle. It has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security. Minimal use of hazardous substances.Sie hat eine Nennhöhe und -breite von 1400 mm bzw. 600 mm.Sie hat eine Nennhöhe und -breite von 1800 mm bzw. 1000 mm.

Features

  • Gebaut für den Zusammenbau eines PanelSeT SFN-Schaltschrankes in Bausatzausführung
  • Das Design des Griffs ist sowohl ästhetisch als auch ergonomisch und erleichtert das Öffnen und Schließen
  • Stabil, robust und langlebig für maximalen Schutz der Komponenten
  • Wiederverwendbare Verpackungen mit signifikanter Abschaffung von Einwegkunststoffen
Technische Daten
Filter Merkmal Wert
Farbe grau
Höhe 1400 mm
Produkt-Art Tür
Breite 600 mm
Ausführung verglast
Schutzart (IP) IK08
Logistik
Merkmal Wert
Ursprungsland FR
Zolltarifnummer 94039910
Compliance
Merkmal Wert
RoHS konform Ja
Stand der RoHS-Richtlinie 31.03.15
Substanz Beschreibung Blei
SVHC frei Nein
