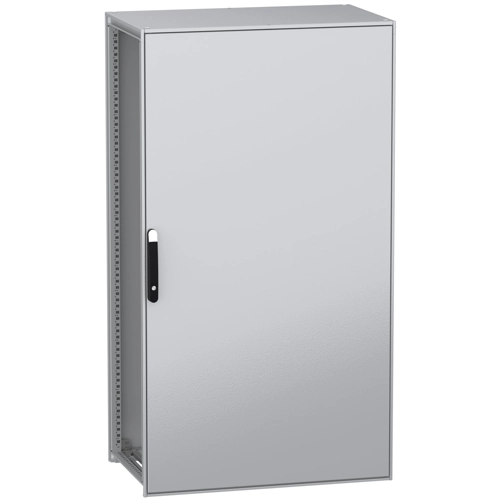

Standgehäuse, NSYSFN181060, Schneider Electric
This PanelSeT SFN is a floor standing modular decarbonized steel electrical enclosure that is suitable for multi-purpose applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. It has a nominal height, width, and depth of 1800 mm, 1000 mm and 600 mm, respectively. The frame and uprights of the enclosure are made of galvanized steel for durability. The door and panels are made of steel sheets, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color with a black (RAL 9005) handle, one plain door, one rear panel, one roof, two sliding rails and one set of quick-fixing mounting plate brackets. The door has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security. The enclosure has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK10 rating. Operation is convenient due to rear, front, and side access.
Features
- Nachhaltiges Design, das recycelten Stahl enthält und mit erneuerbarer Energie hergestellt wird, um den ökologischen Herausforderungen zu begegnen
- IEC and UL compliant making it Stabil, robust und langlebig für maximalen Schutz der Komponenten
- Ergonomisches Design für bequemes und zeitsparendes Arbeiten
- Große Auswahl an Abmessungen und Zubehör zur Vereinfachung der Montage und Installation von elektrischen Geräten
