MIKROE-1396 | MikroElektronika

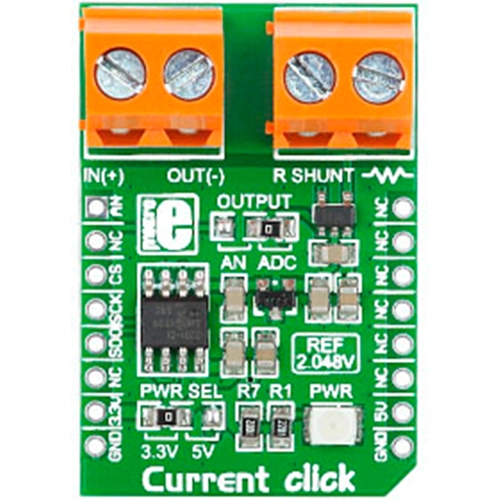

Current click MIKROE-1396
Bestellnr.: 74S1890
EAN: 8606015074436
HTN:
MIKROE-1396
Current click
NCNR (nicht stornierbar / nicht retournierbar)
Einzelpreis (€ / Stk.)
35,819 € *
Standardlieferzeit ab Hersteller beträgt: 4 Wochen
Interface: SPI,Power Supply: 3.3V or 5V,On-board modules: INA196 current shunt monitor, MCP3201 12-bit ADC, MAX6106 voltage reference,Applications: Board is an excellent choice for current measurement in wide ranges of values, from 2mA to 2048mA (depending on the connected shunt),Key Features: Four shunts provided in the package: 0.05Ω, 0.2Ω, 1Ω and 10Ω,Key Benefits: Complete current sense solution. Supports bandwidth up to 500kHz,Compatibility: mikroBUS,Product Type: Current,Click board size: M (42.9 x 25.4 mm)
Technische Daten
| Filter | Merkmal | Wert |
|---|
Download
Logistik
| Merkmal | Wert |
|---|---|
| Zolltarifnummer | 84733020 |
| Ursprungsland | RS |
Compliance
| Merkmal | Wert |
|---|---|
| RoHS konform | Ja |
| Stand der RoHS-Richtlinie | 31.03.15 |
| SVHC frei | Ja |
