7-66504-0 | AMP

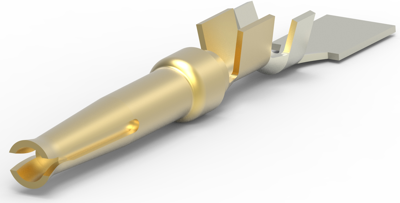

Buchsenkontakt, 0,2-0,6 mm², AWG 24-20, Crimpanschluss, 7-66504-0
Einzelpreis (€ / Stk.)
0,4641 € *
Verfügbar in 5 Tagen: 17.158 Stk. - bei Bestellung heute
Gesamtpreis:
0,46 € *
Preisstaffel
Anzahl
Preis pro Einheit*
1 Stk.
0,4641 €
10 Stk.
0,4165 €
50 Stk.
0,3689 €
100 Stk.
0,3094 €
*inkl. MwSt. zzgl. Versandkosten
Zwischenverkauf vorbehalten
D-Sub-Steckverbinderkontakte, 7-66504-0, AMP
Güteklasse: Standard, Steckverbindersystem: Kabel-an-Kabel, Anschluss von Steckverbinder & Kontakt an: Leitungen und Kabel, Farbcode: Rot, Stiftdurchmesser: , Kontakttyp: Stecksockel, D-Sub-Kontaktgröße: 20, Kontaktmaterial: Phosphorbronze, Beschichtungsmaterial des Steckbereichs des Kontakts: Gold, Anschlussmethode für Leitungen und Kabel: Crimpverbindung, Drahtisolationsunterstützung: Mit, Akzeptiert Drahtisolationsdurchmesser: 1.27 - 1.52 mm, Drahtgröße: 24 - 20 AWG, Drahtgröße: 0.2 - 0.6 mm², Betriebstemperaturbereich: -55 - 105 °C, Zur Verwendung mit: CPC-Steckverbinder.
Technische Daten
Ausführung | Buchsenkontakt | |
Kontaktoberfläche Steckbereich | vergoldet | |
Leiterquerschnitt | 0,2-0,6 mm² | |
AWG-Leiterquerschnitt | AWG 24-20 | |
Kontaktmaterial | Phosphorbronze | |
Isolationsdurchmesser | 1,27-1,52 mm | |
Kontaktanschluss | Crimpanschluss |
Download
Logistik
Zolltarifnummer | 85389099 |
Ursprungsland | CZ |
Compliance
SVHC frei | Ja |
Stand der RoHS-Richtlinie | 31.03.15 |
RoHS konform | Ja |
