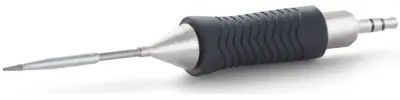

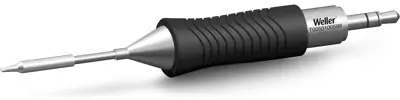

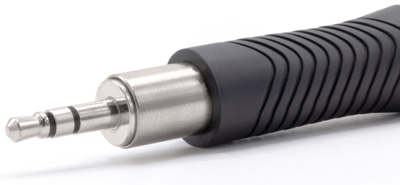

RTM 004 S | Weller

Name: Soldering tip, Chisel shaped, Ø 3 mm, (T x L x W) 0.15 x 20 x 0.4 mm, RTM 004 S
Brand: Weller
SKU: 09L7264
Price: 32.13 EUR
Availability: InStock

Soldering tip, Chisel shaped, Ø 3 mm, (T x L x W) 0.15 x 20 x 0.4 mm, RTM 004 S

Order No.: 09L7264

EAN: 4003019417568

MPN:

RTM 004 S

T0054461299N

Series: RT

Image may differ

Key Specification:

Version soldering tip

Peak type Chisel shaped

Suitable for WMRP, WXMP

diameter 3 mm

Thickness 0.15 mm

Show 47 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

32.1300 € *

Available: 8 pcs.

Leadtime: 2 Weeks **

Total Price:

32.13 € *

Price list

Quantity

Price per unit*

1 pcs.

32.1300 €

5 pcs.

30.5235 €

10 pcs.

29.0003 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Soldering tip, RTM 004 S, Weller

RT Micro Soldering tip, chisel Ø 0,4 x 0,15 mm

Features

Widest range of geometrics and sizes
Active tip technology
Digital tool for data storage
Patented tip & grip design
One intelligent platform

Technical specifications

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	MX
Customs tariff number	85159080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
