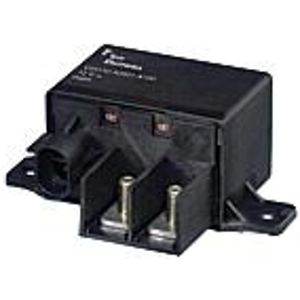

Product Classification: Relays - Automotive High Current Relays, Contact Switching Load (Min): 1000mA @ 5VDC, Rated Coil Voltage: 12 VDC, Coil Suppression: Resistor in Parallel, High Current Automotive Relay Coil Magnetic System: Monostable, DC, High Current Automotive Relay Coil Resistance: 37 Ω, Weight: 220 g, Contact Base Material: AgSnO2, High Current Automotive Relay Contact Current Class: >50A, High Current Automotive Relay Contact Arrangement: 1 Form C (CO), Mounting Type: Screw, Height: 45 mm, Environmental Category of Protection: RTIII, Mounting Brackets: With, High Power Relays (>75A): Yes
Connection | screw connection | |
Contact type | 1 Form C (NO/NC) | |
Contact material | Ag alloy | |
Power | 3.9 W | |
Coil voltage (DC) | 12 V | |
Coil resistance | 37 Ω |
Country of origin | US |
Customs tariff number | 85364190 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
