SICK

6020215 | SICK

Proximity switch, built-in mounting M8, 1 Form A (N/O), 30 V (DC), 200 mA, Detection range 1.5 mm, 6020215

Order No.:  28G120
MPN:
6020215
IM08-1B5PS-ZW1
Series:  IM08
EAN: 4099889447545
SICK
default L
default S

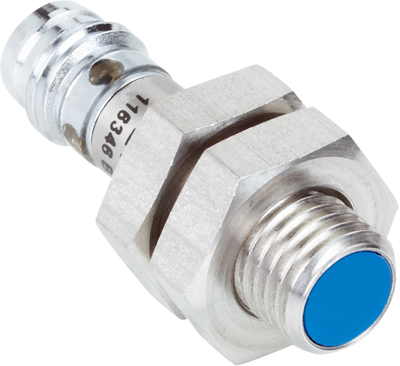

Images may differ
Unit Price (€ / pc.)
66.1997 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
66.20 € *
Quantity
Price per unit*
1 pcs.
66.1997 €
4004 pcs.
25.4422 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

Inductive proximity sensors, 1.5 mm sensing range, type Sick IM08-.

3-wire proximity sensor, clock mode short-circuit protection, polarity reversal protection, surge pulse suppression. Rugged, nickel-plated brass case with M 8 x 1 mm extra-fine thread. High switching rate; Sensing range: 1.5 mm. Output: NO. Mounting mode: flush. Output: PNP. Voltage supply: 10 to 30 VDC. Voltage loss: max. 1.2 V. Current consumption (inactive): max. 20 mA. Continuous current: max. 200 mA. Ready signal delay: max. 100 ms. Switching rate: max. 3000 Hz. Degree of protection (EN 60529): IP 67. Ambient temperatures: –25 to +70 °C. Connection type: PVC cable (3 x 0.14 mm²), 2.0 m, or M 8 3-pole connector. Note: a description of the mating female connectors for the version with male socket is provided in chapter F.

Technical attributes (type, connection type): IM08-1B5PS-ZW1, 2.0 m cable

Technical specifications
Connection stranded wires
Version Inductive sensor
diameter 8 mm
Detection range 1.5 mm

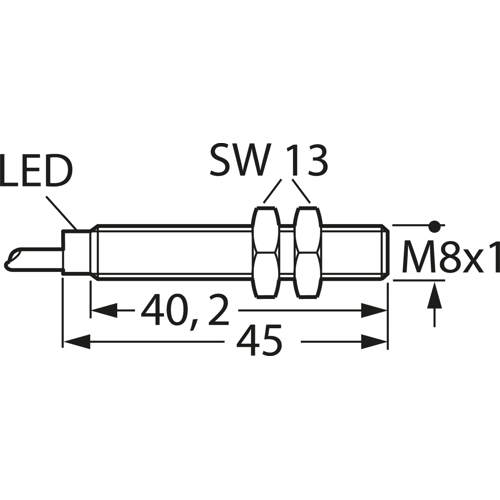

Length 45 mm
Assembly built-in mounting M8
Latching switching function 1 Form A (N/O)
Switching Voltage (DC) 30 V
switching current 200 mA
Degree of protection (IP) IP67
Show similar products (0)
Logistics
Country of origin IT
Customs tariff number 85365019
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Variations
Search results: 1 item in 2 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Length
Connection
diameter
Detection range
Latching switching function
Version
switching current
Assembly
Degree of protection (IP)
Switching Voltage (DC)
Proximity switch, built-in mounting M8, 1 Form A (N/O), 30 V (DC), 200 mA, Detection range 1.5 mm, 6020215
Order No.:
 28G120
Manufacturer:
 SICK
Manufacturer SKU:
 6020215
Total Price: 66.20 € *
1 pcs.
66.1997 €
4004 pcs.
25.4422 €
Available: 0 pcs.
Leadtime: On Request **
45 mm
stranded wires
8 mm
1.5 mm
1 Form A (N/O)
Inductive sensor
200 mA
built-in mounting M8
IP67
30 V
Proximity switch, built-in mounting M8, 1 Form A (N/O), 200 mA, Detection range 1.5 mm, 6020219
Order No.:
 28G122
Manufacturer:
 SICK
Manufacturer SKU:
 6020219
Total Price: 109.54 € *
1 pcs.
109.5395 €
2 pcs.
101.8640 €
5 pcs.
95.7593 €
10 pcs.
89.0358 €
Available: 0 pcs.
Leadtime: On Request **
50 mm
M8-connector
8 mm
1.5 mm
1 Form A (N/O)
Inductive sensor
200 mA
built-in mounting M8
IP67
