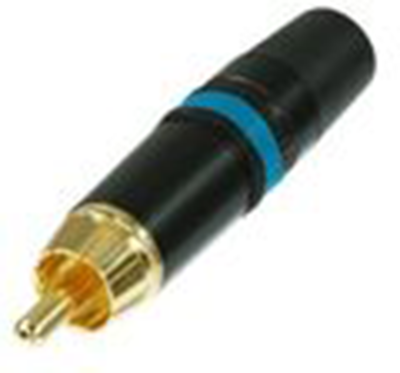

NYS373-6 | REAN
RCA plug for cable assembly 3.5 to 6.1 mm O.D., gold-plated, blue color coding ring
Unit Price (€ / pc.)
1.8326 € *
Available: 0 pcs.
Leadtime: On Request **
RCA plugs, type NEUTRIK/REAN NYS.
Black chromed housing, color code ring and collet strain relief for safe cable mounting; Contact resistance: < 10 mohm. Dielectric strength: 0.5 kV DC. Cable entry: 3.0 to 6.1 mm. Contact material: gold-plated brass. Operating temperatures: –20 °C to +70 °C.
Technical attributes (type, marker ring color): NYS373-6, blue
Technical specifications
| Version | plug | |
| diameter | 12.3 mm | |
| Colour Marking | blue | |
| Enclosure | black | |
| Shell Material | zinc die casting | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
