BTS612N1E3128ABUMA1 | Infineon Technologies
BTS612N1E3128ABUMA1
Active
Total price
(
2.4395 €
* / pcs.)
2.44 €
Currently not in stock, we will order for you
Please send price/quantity requests to info@buerklin.com
Description
Product by Infineon Technologies at Bürklin Elektronik

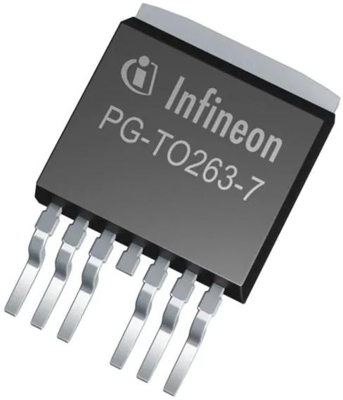

High side switch, BTS612N1E3128ABUMA1, Infineon Technologies
The BTS612N1E3128ABUMA1 is a vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in smart SIPMOS technology.
Features
- Overload protection
- Current limitation
- Short circuit protection
- Overvoltage protection (including load dump)
- Reverse battery protection with external resistor
- ESD protected
Applications
- Compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads
- All types of resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
Technical specifications
| Number of channels | 2 | |
| Version | N channel | |
| drain-source on resistance RDS (on) @ Tj = 25°C max | 0.2 Ω | |
| Enclosure | TO-263 | |
| max. Voltage | 34 V | |
| Max. current | 1.7 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD |
Logistics
| Customs tariff number | 85412900 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
