185656 | HEYCO
Screw-type blind rivet, MH 6.3 to 6.8, CR 2.5 to 8.0 mm, PA 6.6, black, 27026070, A 0.8, B 15.5, C 3.0, D 22.8 mm
Order No.: 18H5106
MPN:
185656
EAN: 4099889506969
Images may differ
No longer in assortment
Unit Price (€ / pc.)
0.4403 € *
Available: 200 pcs.
Leadtime: On Request **
Total Price:
0.44 € *
Quantity
Price per unit*
1 pcs.
0.4403 €
10 pcs.
0.3808 €
50 pcs.
0.3451 €
100 pcs.
0.3213 €
500 pcs.
0.2904 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Screw-type blind rivets, polyamide (PA 6.6, type Heyman 27026.
Suitable for screw fastening, countersunk (type 27026010 only) or filister-head screw with recessed head.

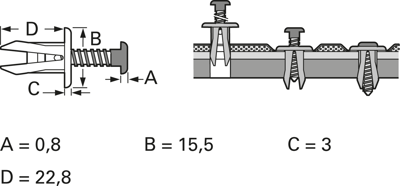

Technical attributes (type, mounting hole (MH), clamping range (CR), dimensions (A, B, C, D)): 070, MH 6.3 to 6.8, CR 2.5 to 8.0, A 0.8, B 15.5, C 3.0, D 22.8 mm
Technical specifications
| Version | Screw-type blind rivet | |
| Suitable for | clamping range 2.5 - 8 mm | |
| Length | 22.8 mm | |
| Hole diameter | 6.8 mm | |
| Material | polyamide |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
