166-30801 | HellermannTyton

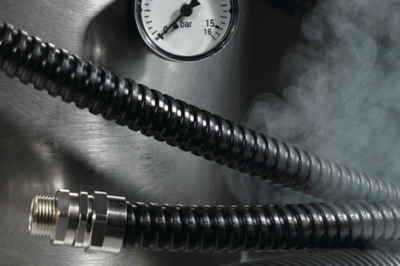

Spiral protective hose, inside Ø 12.9 mm, outside Ø 17.1 mm, BR 40 mm, GS/PVC, black
Unit Price (€ / mtr.)
8.4609 € *
Available: 0 mtr.
Leadtime: 1 Week **
PCS Galvanised Steel Conduit, 166-30801, HELLERMANN TYTON
Metallic conduit with plastic coating.
FEATURES
- High compression, tensile and impact strength
- Very flexible
- Good resistance to alkalis and acids
- Good resistance to chemicals
Technical details
- Min. Temperature: -15°C
- Max. Temperature: 70°C
- Material: Polyvinyl Chloride
- Color: gray
Technical specifications
| Outer diameter | 17.1 mm | |
| Bending radius | 40 mm | |
| Colour | black | |
| Flame-retardant | No | |
| Inner diameter | 12.9 mm | |
| Material | GS/PVC | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -40 °C | |
| Nominal width | 16 mm | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 83071000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
