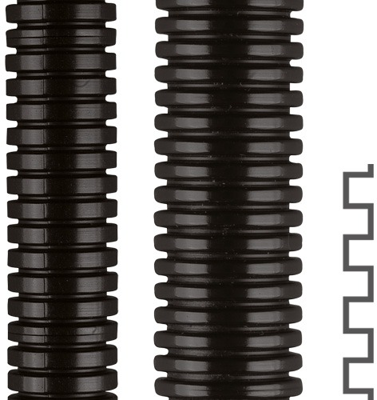

Protective all-plastic tubing that is internally and externally corrugated, thick-walled and coarse profile with the best fire protection, especially for rail vehicles (outdoor use).
Features

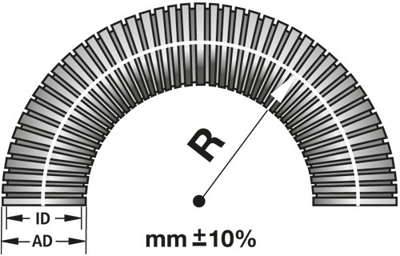

Outer diameter | 34.5 mm | |
Bending radius | 70 mm | |
Colour | black | |
Flame-retardant | Yes | |
Inner diameter | 27 mm | |
Material | polyamide | |
max. operating temperature | 130 °C | |
min. operating temperature | -50 °C | |
Degree of protection (IP) | IP68/IP69K |
Country of origin | DE |
Customs tariff number | 39173200 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
Order No.:
91F2562
Manufacturer SKU:
1 5030 012 029
Order No.:
91F2553
Manufacturer SKU:
1 5030 020 229
Order No.:
91F2544
Manufacturer SKU:
1 5030 020 029
Order No.:
91F2571
Manufacturer SKU:
1 5030 012 229
Order No.:
91F4320
Manufacturer SKU:
1 5030 028 229
Order No.:
91F4322
Manufacturer SKU:
1 5030 028 029
