B500S15A | Diotec
SMD silicon bridge rectifier, SMD, 1 kV, 1 A

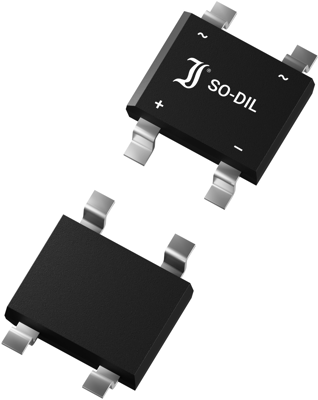

Images may differ
Unit Price (€ / pc.)
0.3570 € *
Available: 1,427 pcs.
Leadtime: 7 Weeks **
Total Price:
7.14 € *
Quantity
Price per unit*
20 pcs.
0.3570 €
100 pcs.
0.2796 €
500 pcs.
0.2297 €
1500 pcs.
0.2035 €
3000 pcs.
0.1821 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
SMD silicon bridge rectifiers, type Diotec B..S.
Technical specifications
| Version | 1-phase | |
| Input voltage | 500 V | |
| Enclosure | SO-DIP | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Assembly | SMD | |
| Rated current | 1 A | |
| Voltage V RRM (peak reverse voltage) | 1 kV |
Download
Logistics
| Country of origin | SI |
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 1,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Variations
Search results: 1 item in 4 variations
*incl. VAT plus shipping costs
Order No.:
60A582
Manufacturer:
Diotec
Manufacturer SKU:
B80S
Total Price: 3.03 € *
10 pcs.
0.3035 €
50 pcs.
0.2166 €
250 pcs.
0.1809 €
1000 pcs.
0.1547 €
2500 pcs.
0.1345 €
Available: 807 pcs.
Leadtime: 5 Weeks **
80 V
160 V
1-phase
SMD
-50 °C
150 °C
1 A
SO-DIP
Order No.:
60A580
Manufacturer:
Diotec
Manufacturer SKU:
B40S
Total Price: 0.17 € *
1 pcs.
0.1737 €
10 pcs.
0.1238 €
100 pcs.
0.1059 €
500 pcs.
0.0928 €
1000 pcs.
0.0845 €
Available: 2,060 pcs.
Leadtime: 18 Weeks **
40 V
80 V
1-phase
SMD
-50 °C
150 °C
1 A
SO-DIP
Order No.:
60A590
Manufacturer:
Diotec
Manufacturer SKU:
B500S15A
Total Price: 7.14 € *
20 pcs.
0.3570 €
100 pcs.
0.2796 €
500 pcs.
0.2297 €
1500 pcs.
0.2035 €
3000 pcs.
0.1821 €
Available: 1,427 pcs.
Leadtime: 7 Weeks **
500 V
1 kV
1-phase
SMD
-50 °C
150 °C
1 A
SO-DIP
Order No.:
60A588
Manufacturer:
Diotec
Manufacturer SKU:
B380S
1500 pcs.
0.0928 €
Available: 0 pcs.
Leadtime: On Request **
380 V
800 V
1-phase
SMD
-50 °C
150 °C
1 A
SO-DIP
*incl. VAT plus shipping costs
**Subject to prior sale
