1-794221-0 | AMP

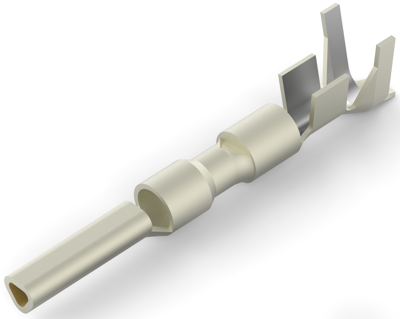

Receptacle, 0.3-0.9 mm², AWG 22-18, crimp connection, 1-794221-0
Unit Price (€ / pc.)
0.2630 € *
Available in 5 Days: 54,000 pcs. - if ordered today
Power contact, 1-794221-0, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 10.5 A, Contact Type: Socket, Contact Retention Within Housing: Without, Mating Pin Diameter: 1 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 22 - 18 AWG, Wire Size: 0.3 -0.9 mm², Accepts Wire Insulation Diameter Range: 1.5 - 2.39 mm, Operating Temperature Range: -20 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.3-0.9 mm² | |
| Contact connection | crimp connection | |
| Contact surface mating area | gold-plated | |
| Insulation diameter | 1.5-2.39 mm | |
| Contact material | brass | |
| Version | receptacle | |
| AWG cross-section | AWG 22-18 | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
