696429-1 | AMP
Butt connectorwith insulation, 3.0-6.0 mm², AWG 12 to 10, natural, 42.06 mm

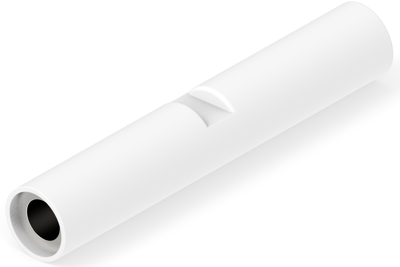

Splice, 696429-1, AMP
Discrete Wire Type: Stranded, Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Number of Serrations: 8, Insulation Support Sleeve Material: Copper, Splice Features: Standard, Splice Material: Copper, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Termination Method: Crimp, Wire Insulation Support: With, Barrel Inside Diameter (Min): 3.28 mm, Wire Size: 12-10 AWG, Wire Size: 3-6 mm², Splice Wire Insulation Diameter (Max): 5.59 mm, Wire Size: 5180-13100 CMA, Insulation Requirement: Fully Insulated, Operating Temperature Range: 150 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 500, Splice Packaging Method: Loose Piece
| Version | butt connector | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | natural | |
| Isolated | Yes | |
| Length | 42.06 mm | |
| Cable cross-section | 3.0-6.0 mm² | |
| Material | copper | |
| shrinkable tubing | No |
| Country of origin | TW |
| Customs tariff number | 85369095 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
